Applications
- Spray shields are used to convert dangerous leaks and sprays into safe, manageable releases.
- Spray shields are safety devices that provide added levels of protection for plant personnel and assets.
- Spray shields can be used to provide protection on gasketed flanged joints, screwed connections, valve bonnets, filters, expansion joints, and any other components that could pose a leakage risk.
Dimensions
- To fit ASME B16.5 flanges; 1/2” thru 24”
Classes 150, 300 and 600
- Larger or custom sizes available on request.
Properties
- The open ended shield design ensures that no leaking product remains trapped within the shield itself.
- The mechanical latch or hook & loop attachment method provides a quick means to install and remove the shields.
- No tie cords or additional tools are required to install the shields.
- Litmus paper patches are incorporated into the shields to provide a visual indication of joint leakage in chemical applications.
- For smaller flanges sizes, universally sized shields can be fitted to a number of different flange sizes or pressure classes.
Materials

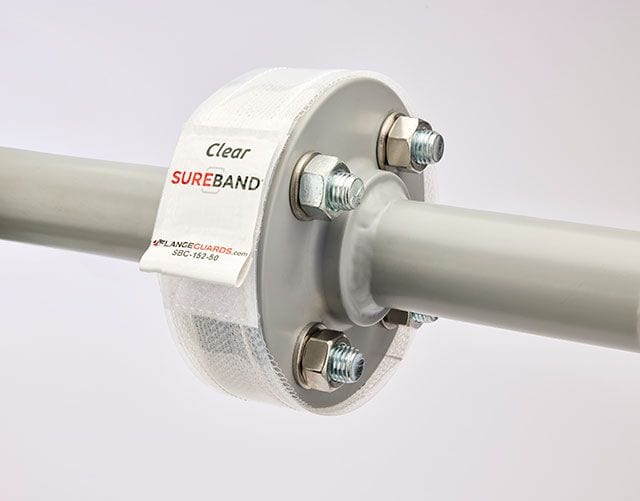

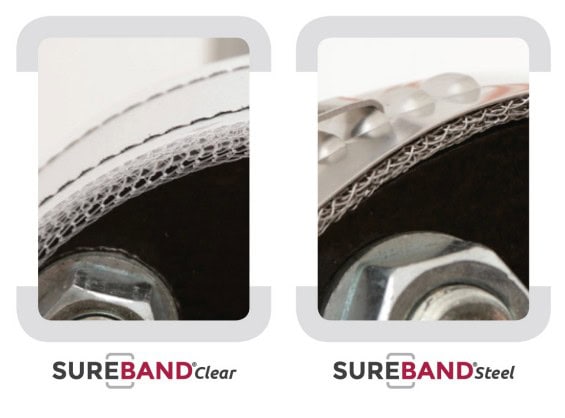

- SUREBAND Clear PTFE – used with aggressive chemical media.
- SUREBAND Steel – SS 316 stainless steel used with higher temperature and pressure processes.

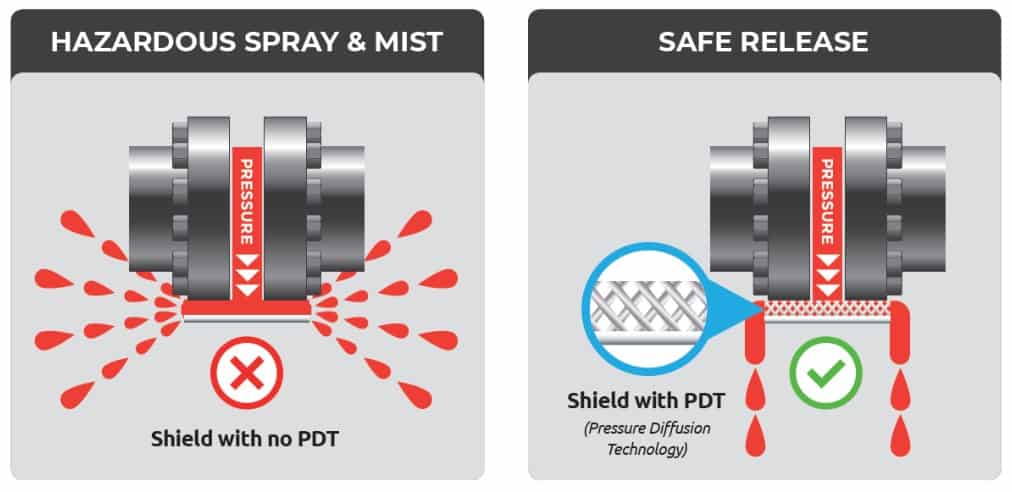

- Pressure Diffusion Technology (PDT) multi-layered mesh is used with both shield varieties to diffuse pressure from sprays or leaks, and prevents mist formation.
