KLINGER®top-chem 2003
High adaptability and tightness even at low surface loads

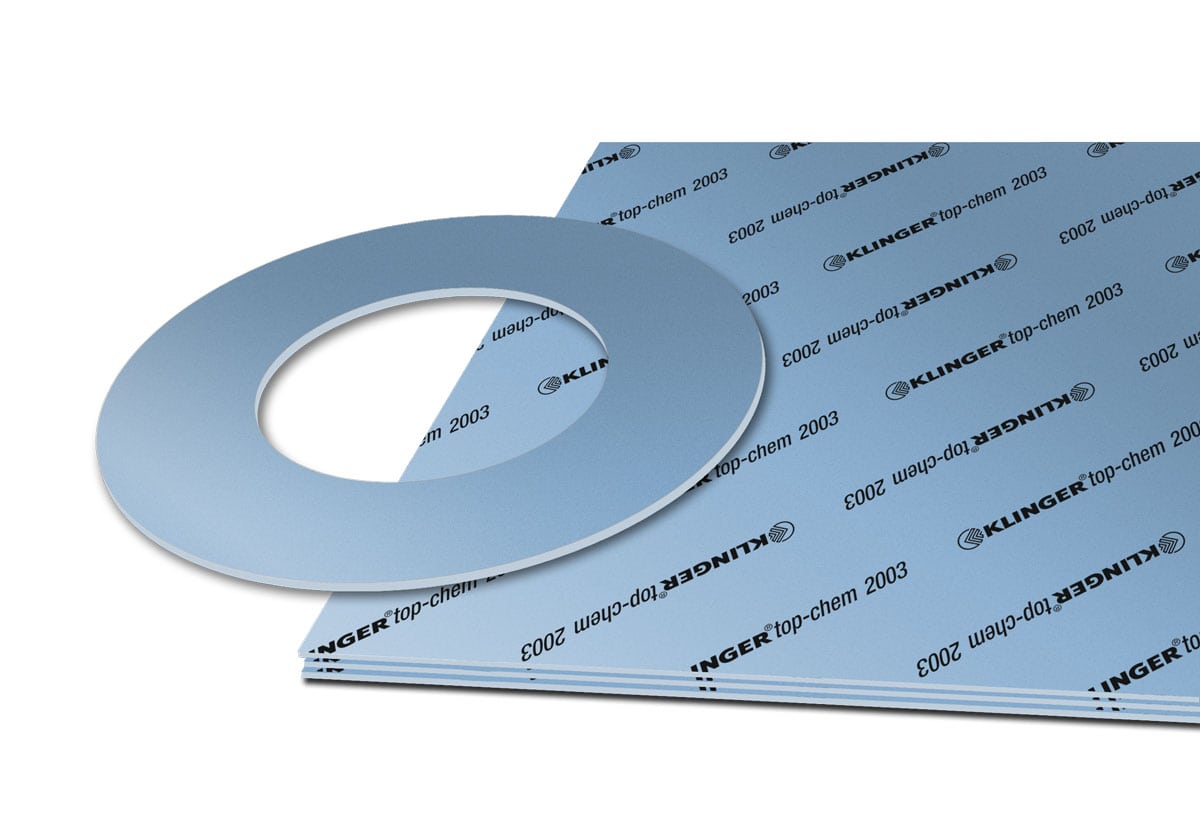

KLINGER top -chem 2003 is a premium PTFE gasket material filled with hollow glass microspheres for dependable sealing in demanding chemical applications. It combines excellent chemical resistance with high
compressibility and outstanding sealing performance at low gasket stress, making it well suited for strongly acidic and alkaline services at moderate temperatures and loads.
Typical Values Refer to 2.0 mm Thick Material
| Compressibility ASTM F36 M | 18 % |
| Recovery ASTM F36 M | 35 % |
| Stress relaxation DIN 52913 30 MPa, 16 h/150°C |
13 MPa |
| KLINGER Cold/Hot Compression Test 25 MPa Thickness Decrease 73°F (23°C) Thickness Decrease 500°F (260°C) |
10 % 39 % |
| Tightness DIN 28090-2 | 0.01 mg/s x m |
| Thickness/Weight Increase H2SO4, 100%, 18 h/23°C HNO3, 100%, 18 h/23°C NaOH, 33%, 72 h/110°C |
1 / 1% 0 / 5 % 1 / 5 % |
| Density | 1.7 g/cm3 |
| Average surface resistance ρO | 9x10E12 Ω |
| Average specific volume resistance ρD | 2.6x10E12 Ω cm |
| Average dielectric strength Ed | 16.7 kV/mm |
| Average power factor 50 Hz | 0.085 tanδ |
| Average dielectric coefficient 50 Hz | 2.8 εr |
| Thermal conductivity λ | 0.18 W/mK |
| Color | Light Blue |
CERTIFICATES & APPROVALS
- Oxygen Tested
- DIN-DVGW
- DVGW H2 -ready (ZP 5123)
- DIN 16421 (W 270)
- KTW -BWGL
- DNV approval
- TA Luft (Clean air)
- FDA conformity
- Regulation (EU) No. 1935/2004
- VDI 2200 blowout
KEY FEATURES & BENEFITS
- High compressibility
- Resistant to cold flow
- Consistent material composition
- Excellent sealing at low stress
- Superior chemical resistance
- Conforms Easily
- No ageing of the material
The pressure/temperature graphs shown are the most current method of determining the suitability of a gasket material in a known environment. However, chemical compatibility must also be considered.
ρT diagram for thickness 2.0 mm:
In area 1 the gasket material is suitable using common installment practices subject to chemical compatibility
In area 2 appropriate measures are necessary for installation of the gasket to ensure maximum performance. Please call or refer to KLINGERexpert for assistance.
In area 3 do not install gaskets in these applications without first referring to KLINGERexpert or contacting KLINGER Thermoseal’s technical support service.
The ability of a gasket to make and maintain a seal depends not only on the style and quality of the gasket material, but also on medium being sealed, the flange design, the amount of pressure applied to the gasket by the bolts and how the gasket is assembled onto the flanges and tightened. These factors are beyond the manufacturer’s control. Please take note of our installation manual in TECHNICAL RESOURCES.
